TRE Layer Components

Prerequisites

Understanding of Five Safes TES Context C4 diagram.

Core Components

Summary

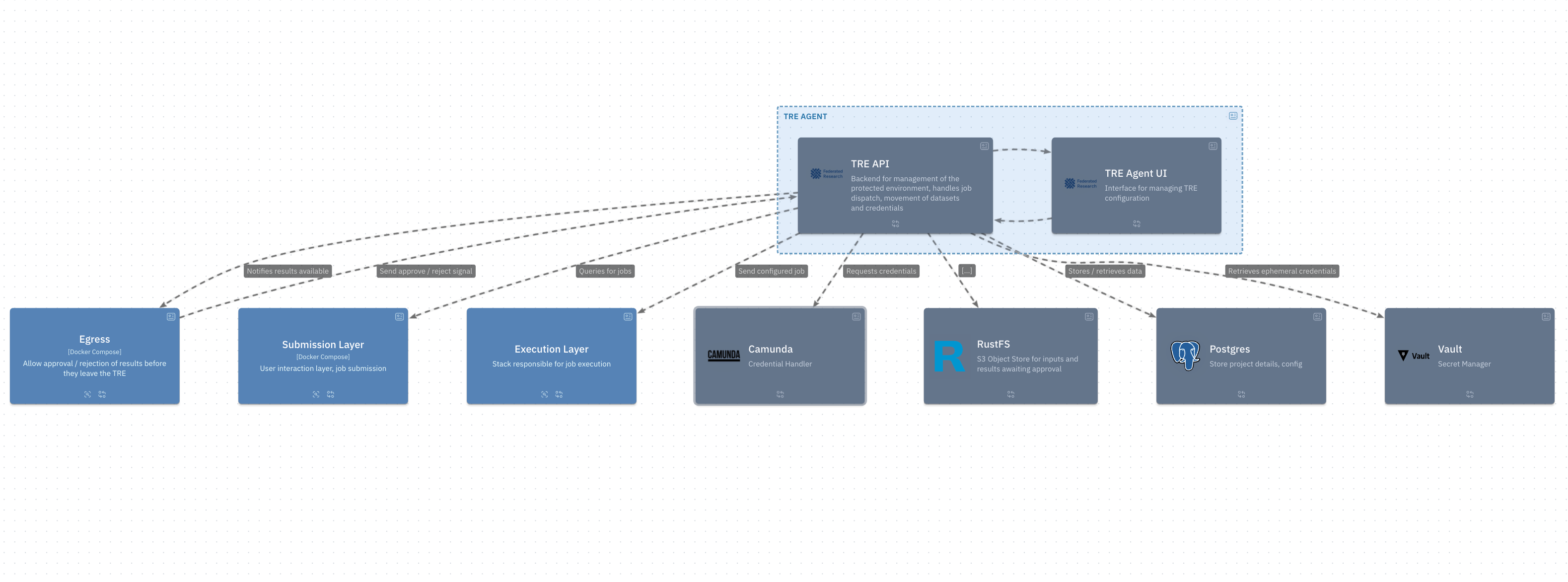

TRE layer components

Here is a summary of the required components which make up the TRE Layer:

Component	Notes
KeyCloak	The TRE Agent and Egress apps each require a Keycloak realm containing users and clients authorised to access them
S3 (MinIO or RustFS)	An Amazon S3 compatible TRE Storage service
RabbitMQ	A message broker used for queueing
PostgreSQL	A database for the TRE Agent and Egress apps to keep local state
Hashicorp Vault	Used for accessing ephemeral credentials as secrets
OpenLDAP	Used to provide ephemeral credentials for Trino (if in use as a datasource)
Camunda Connectors	A REST API allowing other services (e.g. TRE Agent) to integrate with Camunda
Camunda Orchestration	A consolidated service that combines Camunda functionality via Zeebe + Operate + Tasklist
ElasticSearch	Used for Camunda’s local datastore such as workflow state
TRE-Camunda	A service defining the handlers for ephemeral credentials management. Registers the handlers with Camunda, via Zeebe
TRE Agent API	A REST API for TRE Agent functionality
TRE Agent GUI	A Web Frontend for TRE Admins to log into and interact with the TRE Agent
Egress API	A REST API for Egress Portal functionality
Egress GUI	A Web Frontend for Egress Officers to log into and interact with the Egress Portal
TES Backend	A standard GA4GH TES implementation to execute the analysis

You may choose how to distribute your own deployment of these components, as long as they are able to communicate with each other over the network.

For some components, such as KeyCloak or S3 (MinIO or RustFS), you may wish to use your own existing deployments.

User accessible components

A subset of the components will need to be accessible by users, outside of the TRE Layer environment, through a reverse proxy or port forwarding:

Component	Reason	Sample Port *
KeyCloak	So that users can authenticate and admins can manage the TRE Agent and Egress KeyCloak Realms (if you are using the internal, built-in KeyCloak)	8085
TRE Agent GUI	So that TRE Admins can log into and interact with the TRE Agent	8989
TRE Agent API	So that TRE Agent GUI browser functionality, and optionally other services, can interact with the TRE Agent REST API	8072
Egress GUI	So that Egress Officers can log into and interact with the Egress Portal	8100
S3 UI	So that Egress Officers can interact with the S3 storage through a web interface	9003

Note: Sample ports are provided for reference only. It can be modified to reflect the your own infrastructure and configuration choices.

If you are setting up a reverse proxy for S3 (MinIO or RustFS), the Websockets Support should be enabled for S3 GUI Proxy host.

TRE Database

A TRE database is the database which the analysis query runs against.

If a TRE database is deployed in cloud managed instances (for example, AWS RDS, Azure SQL DB Managed Instance, etc.), this 5 Safes TES implementation requires that you set the TRE Agent with the admin credentials of the TRE database, in order to create and revoke ephemeral credentials. This can be done by setting the environment variables TRE_DATA_USER and TRE_DATA_PASSWORD with the credentials of the user, more details here .

admin credentials are the ones used when creating or setting up the TRE DB instance.
If the TRE decides to use PostgreSQL as the database, version 16 or later is required. Because, in Postgres 16+, to revoke a user/role, either superuser or admin privilege is required. More details here .
A user created with the CREATEROLE permission can create ephemeral credentials but cannot revoke them.
In the case where a TRE cannot not use admin credentials, the TRE database can be hosted in the same postgresql database instance, which keeps the local state of TRE Agent, and superuser credentials of the postgresql can be used in the environment variables TRE_DATA_USER and TRE_DATA_PASSWORD.

Remember the TES Backend’s environment will also need network access to project data sources or TRE database, in order for analysis to run against them.
