Core Components

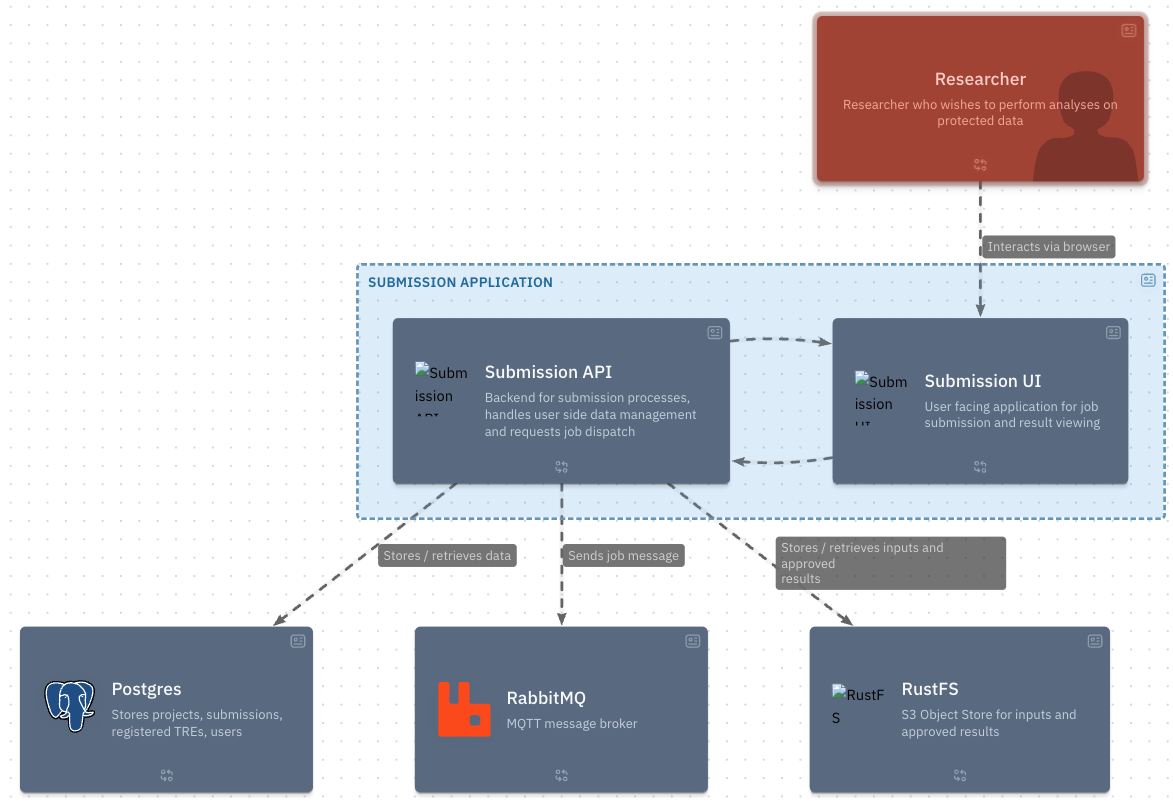

Here is a summary of the required components which make up the Submission Layer:
| Component | Notes |
|---|---|
| KeyCloak (only if you use the built-in KeyCloak) | The Submission apps require a Keycloak realm containing users and clients authorised to access them |
| S3 storage (e.g., MinIO, RustFS) | An Amazon S3 compatible Submission Storage service |
| RabbitMQ | A message broker for queueing submissions for target TREs |
| PostgreSQL | A database for the Submission apps to keep local state |
| Submission API | A REST API for Submission Layer functionality, including the GA4GH TES API |
| Submission GUI | A Web Frontend for users to log into and interact with the Submission Layer |
| Hashicorp Vault | Identity-based secrets and encryption management system used for storing TRE service account credentials |
You may choose how to distribute your own deployment of these components, as long as they are able to communicate with each other over the network.
For some components, such as KeyCloak or S3 (e.g., MinIO, RustFS), you may wish to use your own existing deployments.
User accessible components
A subset of the components will need to be accessible by users, outside of the TRE Layer environment, through a reverse proxy or port forwarding:
| Component | Reason | Sample Port * |
|---|---|---|
| KeyCloak | So that users can authenticate and admins can manage the Submission KeyCloak Realm (if you are using the built-in KeyCloak) | 8085 |
| S3 GUI | So that Researchers can upload and download Submission data (inputs or outputs) through a web interface | 9001 |
| S3 API | So that TREs can put the analytics results into S3 storage through a REST API | 9000 |
| Submission GUI | So that users can log into and interact with the Submission Layer | 7220 |
| Submission API | So that Researchers and TREs can interact with the Submission Layer via a REST API | 5034 |
Note: Sample ports are provided for reference only. It can be modified to reflect the your own infrastructure and configuration choices.
If you are setting up a reverse proxy for S3 (e.g., MinIO, RustFS), the
Websockets Support should be enabled for S3 GUI Proxy host.
