Quickstart

Preparation

To submit a task through the Submission Layer API, please make sure the following prerequisites are met:

• A TRE Agent is deployed. Guide is here.
• A project is set up and has been approved for access to the TRE. Guide can be found here. To make sure that the project has been approved and Submission Layer is in sync with TRE Agent, choose the project in Submission layer and navigate to the TREs section. You should see Approved status for the TRE.

- An access token is obtained. Guide is here.

Send task

You can make the request from the Submission Layer Swagger API hosted at http://localhost:5034/swagger. Do this by the following steps:

1. Authorise the request with the Access Token obtained in the previous step with the Authorise button on the top right.

2. Click on the POST /v1/tasks endpoint, under the TaskServiceApi section. Then click on the Try it out button.

3. Enter the following payload, then click on the Execute button:

{
  "state": 0,
  "name": "Hello World",
  "inputs": [],
  "outputs": [
    {
      "name": "Stdout",
      "description": "Stdout results",
      "url": "s3://",
      "path": "/outputs",
      "type": "DIRECTORY"
    }
  ],
  "executors": [
    {
      "image": "ubuntu",
      "command": ["echo", "Hello World"],
      "workdir": "/outputs",
      "stdout": "/outputs/stdout"
    }
  ],
  "volumes": null,
  "tags": {
    "project": "<ProjectName>", // Project that you would like to submit to.
    "tres": "<TREName>" // TRE related to that Project
  },
  "logs": null,
  "creation_time": null
}

Egress

For the data to be released an Egress Manager needs to approve the request.

Results

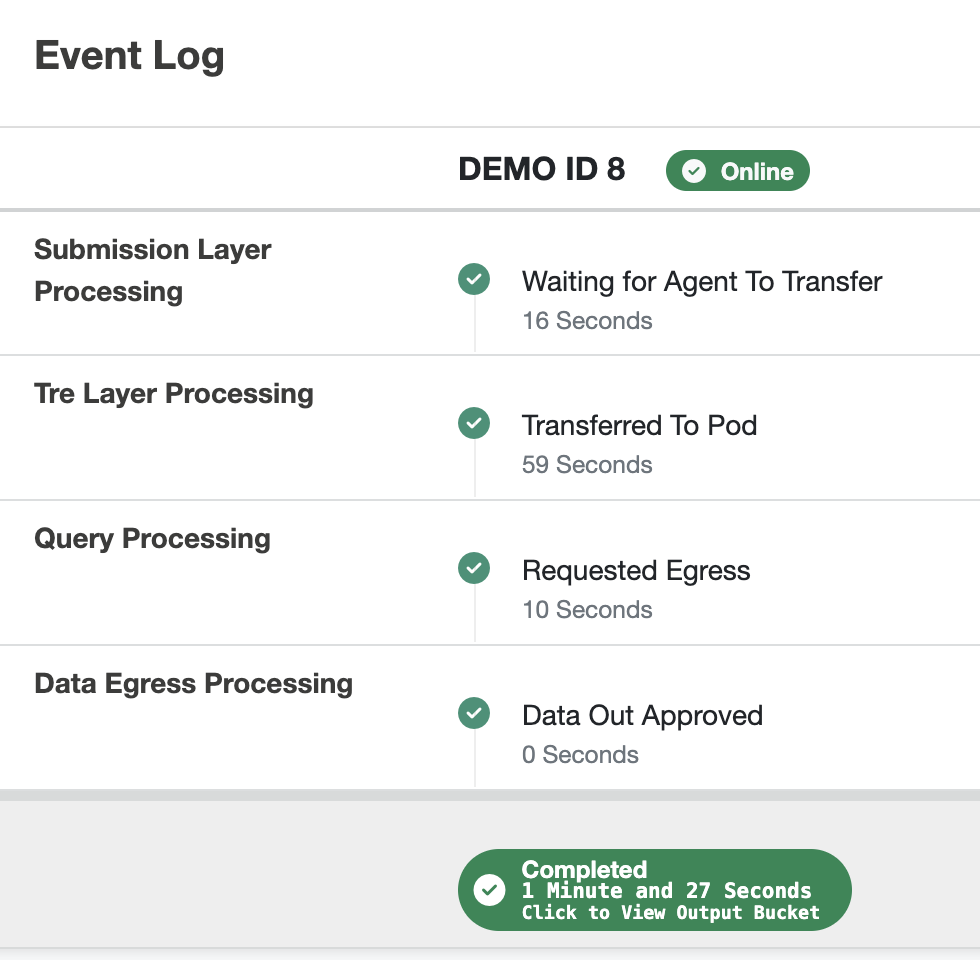

Once the Egress request has been approved you can view them in the output bucket:
