Submitting to Five Safes TES

Researchers interact with Five Safes TES (5S-TES) using the submission layer. The submission layer ensures two of the Five Safes: Safe People and Safe Projects. This means you have to become a user, and be added to a project. The submission layer has an HTTP API which accepts TES messages. For convenience a web application and Python client library have been provided.

Background

TES messages for 5S-TES

The reference documentation for TES messages specifies the standard for creating a task . 5S-TES accepts this format, but some fields are treated differently because of how the submission layer processes messages before they’re sent to a TES engine.

Use of tags in 5S-TES

In TES, the tags field is “used to store meta-data and annotations about a task”. However, in 5S-TES, this has been overloaded so that two tags are essential.

A Project tag must contain the name of an approved project in the submission layer

A tres tag must contain a list of TREs that should run the task, separated by a pipe character (|).

An example of the tags field is:

"tags": {
            "Project": "NottinghamDemo",
            "tres": "Nottingham TRE 01|Nottingham TRE 02"
         },

Projects

5S-TES users do not interact directly with Trusted Research Environments (TREs). Instead, data access in TREs is scoped by a project, which has a defined time for which it is valid, and defined data users can access through it. This means that you have to request, and be approved for, permission to make submissions to a project.

Submissions

A submission means sending a Five safes TES message to the submission layer. The submission layer then uses tags to assign the task to a project and which TREs should run it.

Authentication

If you are making submissions to 5S-TES using the web application, those interactions are authenticated when you log in. If you are making submissions programmatically, you will have to authenticate your requests using an API token. To get an access token, select “API access token” in the top ribbon of the Submission layer web application and copy it to your clipboard.

Executors

TES tasks run through executors, specified in the executors field of a TES message. An example TES message could contain

{
    ...,
    "executors": [
        {
            "image": "harbor.federated-analytics.ac.uk/5s-tes-analysis-tools/5s-tes-analysis-tools-tre-sqlpg:1.0.0",
            "command": [
                     "--Output=/outputs/output.csv",
                     "--Query=<SOME SQL>"
            ],
        }
    ]
}

This tells the TES engine in each TRE to load the "image" of the container at the specified URL. A container is like a lightweight virtual machine wrapping some software, which offers benefits in security and reproducibility. When the container is loaded, the specified "command" is then executed inside the container. The TES standard lets you run any sequence of containers, so 5s-TES theoretically could too. In practice, the executors you can run in 5S-TES TREs will depend on which containers the TRE will allow you to. The examples in this documentation run on containers too, but will not cover all research needs.

Preparing for a submission

Methods

Once you have access to the submission layer, you can make submissions through the HTTP API. To make submissions easier, a python library (the Workbench) and a web application are provided.

Workbench

Five Safes TES workbench is a python library of tools designed to make interacting with Five Safes TES simpler and easier, available on Github  and PyPi . Its main functions are to assist with creation and submission of TES messages, as well as retrieval of results.

The typical workflow consists of four steps:

• Validate: Provide your infrastructure configuration and credentials.
• Build: Choose a task template and supply your analysis parameters.
• Submit: Send the task to the TES endpoint.
• Fetch Results: Fetch output files from MinIO storage once the task completes.

There are several ways to pass the configuration and authorisation information to workbench. Information can be passed in directly, or it can be put into a config.yml file. The file is the recommended method, as it means that the file can be reused, rather than copying the information in every time. We also recommend using keycloak credentials over the token, where possible as tokens have a short lifetime.

There is a Jupyter notebook  demonstrating the workbench’s main functions.

# ----- Five Safes TES Workbench — Example Configuration ------

config:

 # ---- Required Configuration ----

 project: "your-project-name"
 tes_base_url: "http://your-5s-tes endpoint:5034"
 minio_sts_endpoint: "http://your-minio-endpoint:9000/sts"
 minio_endpoint: "your-minio-endpoint:9000"
 minio_output_bucket: "your-output-bucket-name"
 tres:
   - "Your-TRE1"
   - "Add more TREs as needed"


auth:
 # ---- Option 1: Access Token ----
 # (Use Access Token if you have one from the Submission UI.)

 access_token: "your-access-token-here"

 # ---- Option 2: Keycloak Credentials ----
 # (Use Keycloak credentials if you want the Workbench to obtain an access token on your behalf.)

 client_id: "your-keycloak-client-id"
 client_secret: "your-keycloak-client-secret"
 username: "your-keycloak-username"
 password: "your-keycloak-password"
 keycloak_url: "http://localhost:your-keycloak-port/"

Web application

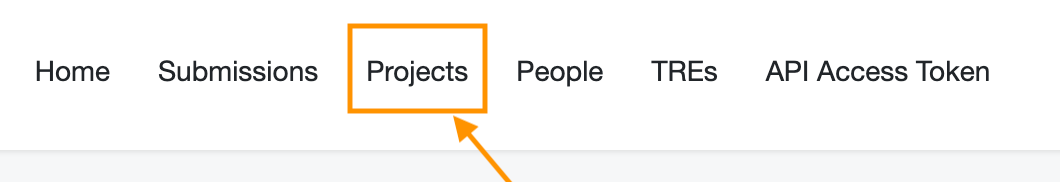

As each submission is associated with a project, you make your submissions in the web application by first navigating to the projects view. In the projects view, you can then select a project you are assigned to.

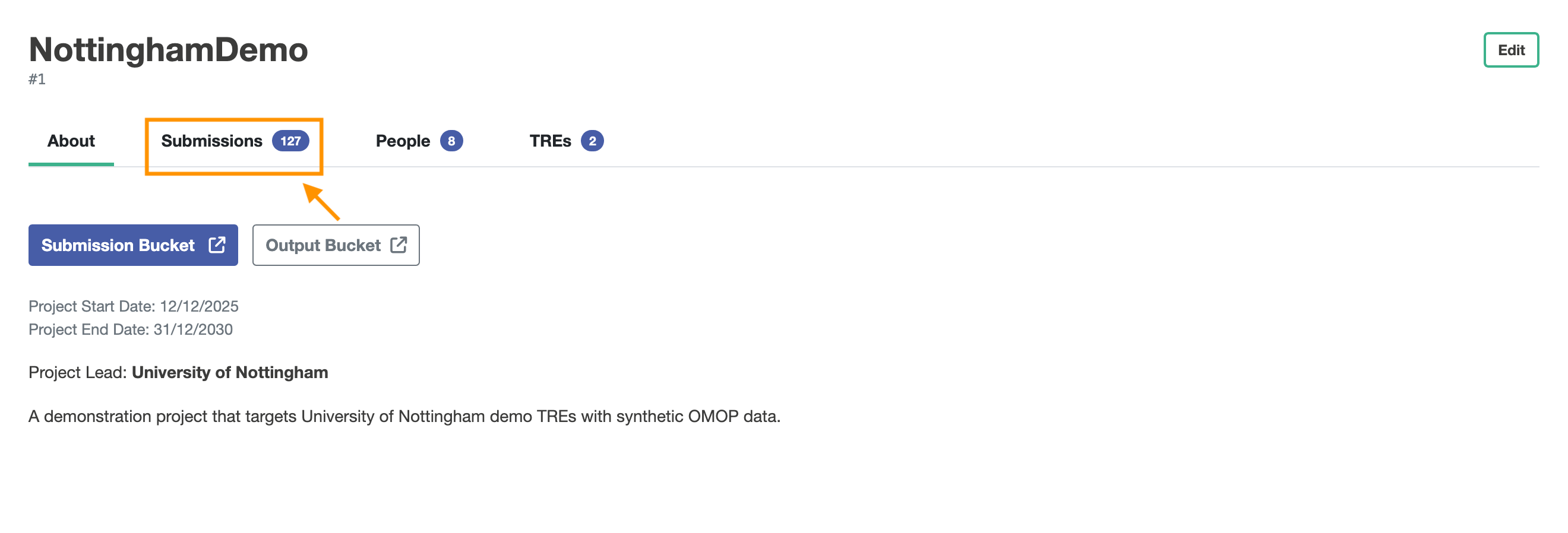

When you are in the project, you can select the Submissions view.

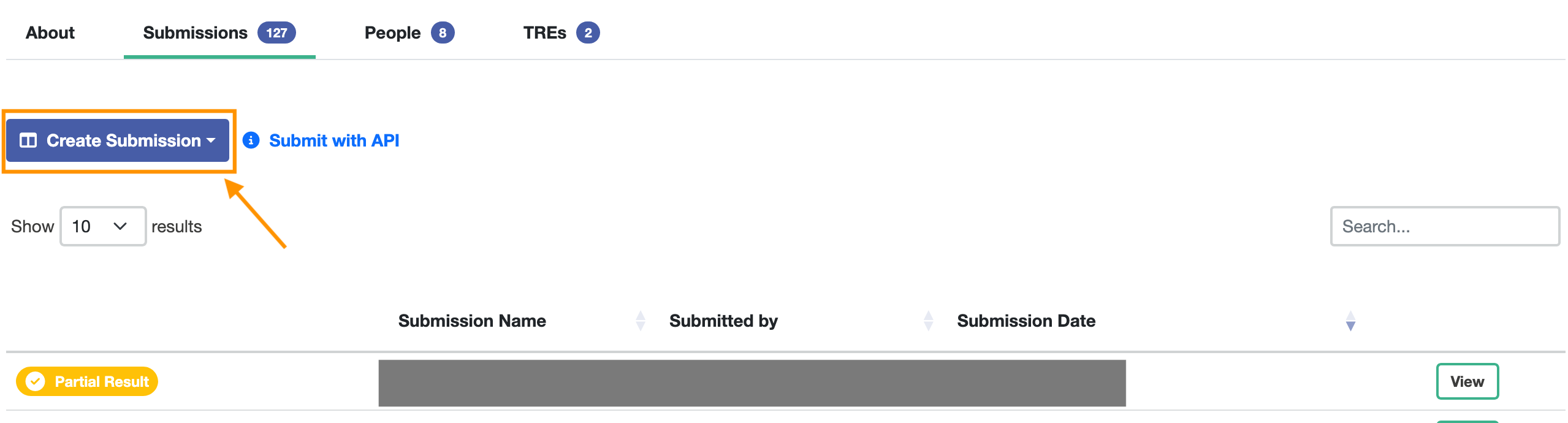

In the Submissions view, you will be shown a button to make a new submission. Clicking the Create Submission button will give you the options

• TES wizard
• GraphQL TES wizard

Submission layer wizards

When making a submission using the submission layer web application, you can use the TES wizard.

There are three options:

1. Simple SQL Query: Executes a default SQL container. Just provide a SQL Query.
2. Custom Image: Provide details for another image to run, along with commands and environment variables.
3. Raw JSON: Write a TES message from scratch for more complex requirements.

Raw JSON The Raw JSON wizard has the simplest interface: a single text box for writing a TES message. This includes syntax highlighting and formatting.

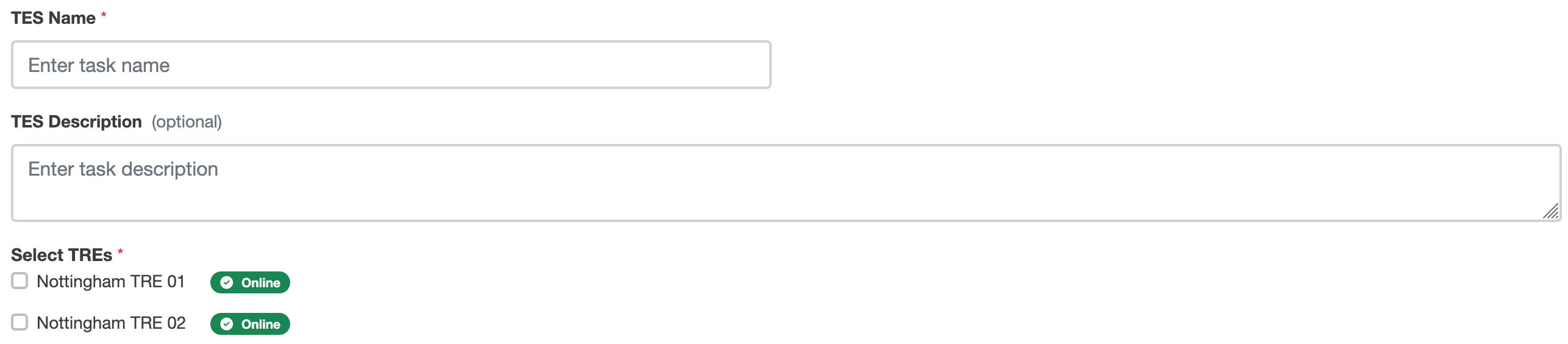

Common features The other wizards have some options in common.

Simple SQL Query

The Simple SQL Query wizard has a single additional element: a text box for writing a SQL query.

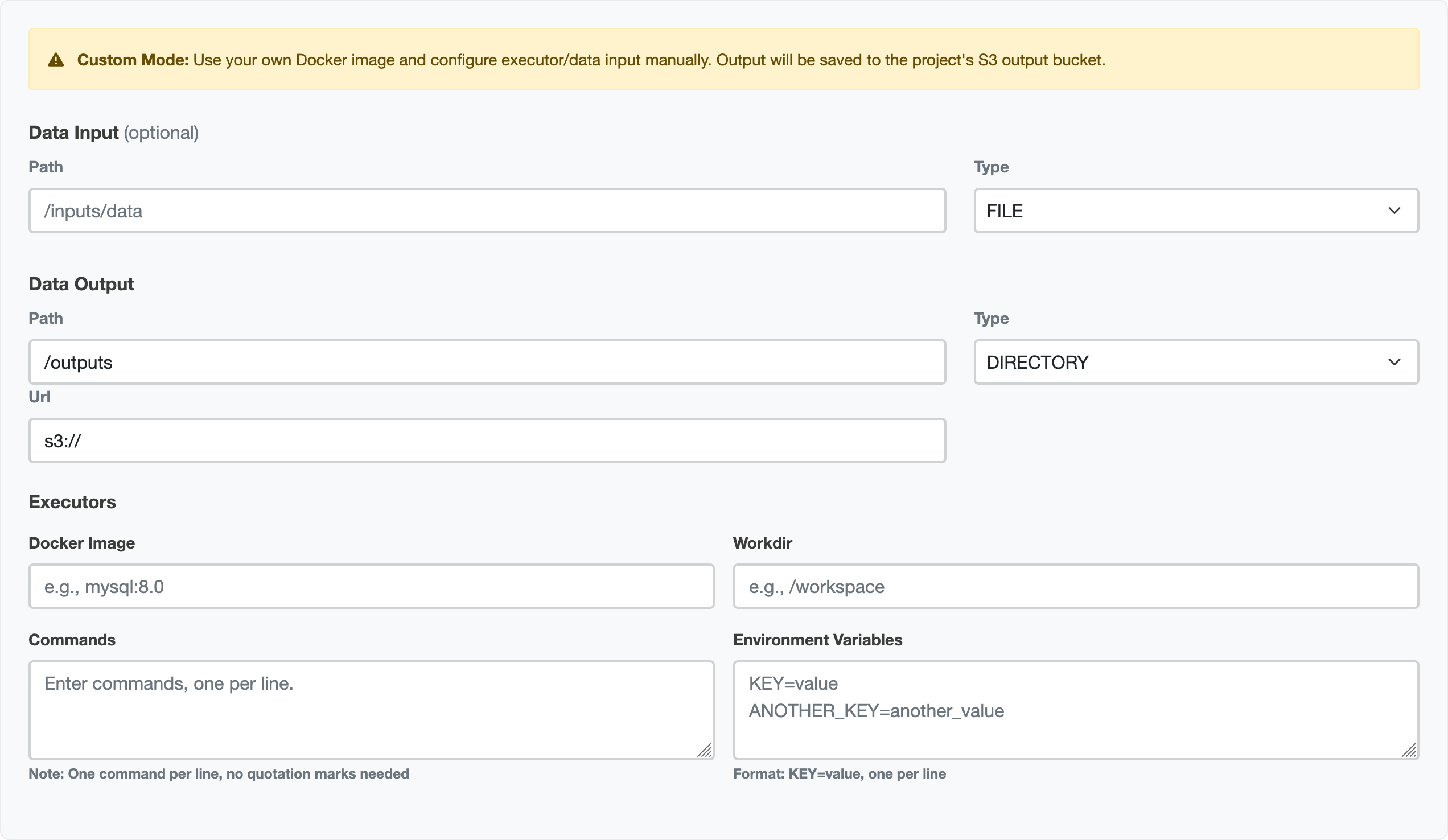

Custom image

The custom image wizard provides several more options for running tasks.

Data input

If the TREs support it, you can provide a path to download extra data for input.

• Path: a textbox to provide the path from which to collect data
• Type: a selection box where you can choose whether your input is a FILE or DIRECTORY.

Data output

You can specify where your output is stored. The TRE agent will amend this to comply with egress policy.

• Path: a textbox to provide the path to which output data should be sent
• Type: a selection box where you can choose whether your output is a FILE or DIRECTORY.
• URL: A text box to specify a URL for storing your data.

Executors

This section contains details of your executor(s).

• Docker image: Executors are containers. This textbox allows you to specify which.
• Workdir: The working directory used by this container.
• Commands: A textbox for the commands to pass to the container

--body-json {"code":"GENERIC","analysis":"DISTRIBUTION","uuid":"123","collection":"test","owner":"me"} --no-encode

--body-json
{"code":"GENERIC","analysis":"DISTRIBUTION","uuid":"123","collection":"test","owner":"me"}
--no-encode

• Environment variables: Some containers will need some environment variables to be passed to them to work. You do not need to specify all of these; for example for many TREs, you will not have database credentials and these will be populated for you.

Submit task

For all the wizards, there is a button at the bottom to submit your task.

Once this is pressed, the task is sent to the submission layer. This area will then display your task’s progress as it is sent to the TRE agent, then to the TES engine, and when the outputs are being reviewed.

When this is complete, you can collect your results.
